Bi-directional ESD Protection Diode

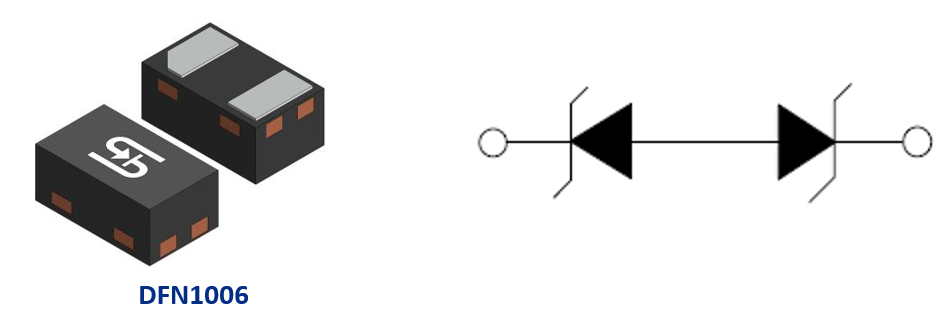

TESDL24VB17P1Q1 is a unique design with proprietary clamping cells in a small package. The DFN1006 package size is 1.0 mm x 0.6 mm and the thickness is only 0.5 mm, which can meet the needs of new products for small packages. During transient conditions, the proprietary clamping cells prevent over-voltage on the control/data/power lines, protecting any downstream components.


  • Battery contacts
  • Power management system
  • Portable devices
  • Digital cameras
  • Digital frames
  • Cellular handsets and accessories
  • Notebooks, desktops and servers
  • Microprocessor-based equipment

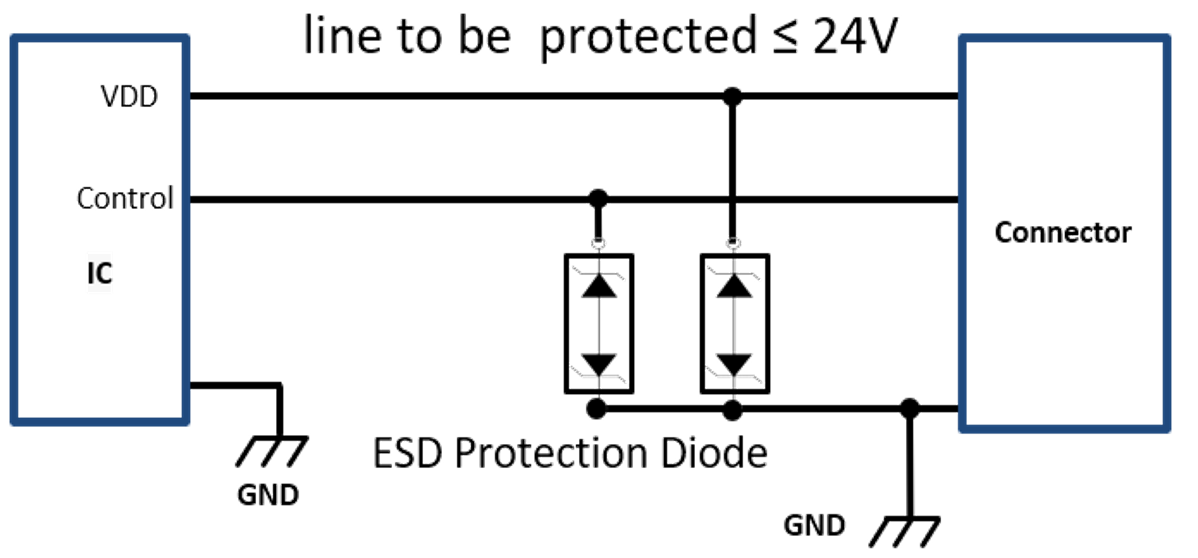

Application diagram

Product Portfolio

Part NumberVWMCJ maxESD robustness (IEC61000-4-2)IPPM (at tp= 8/20μs)
