Integrated AMR for Cylinder Position Detection

Description

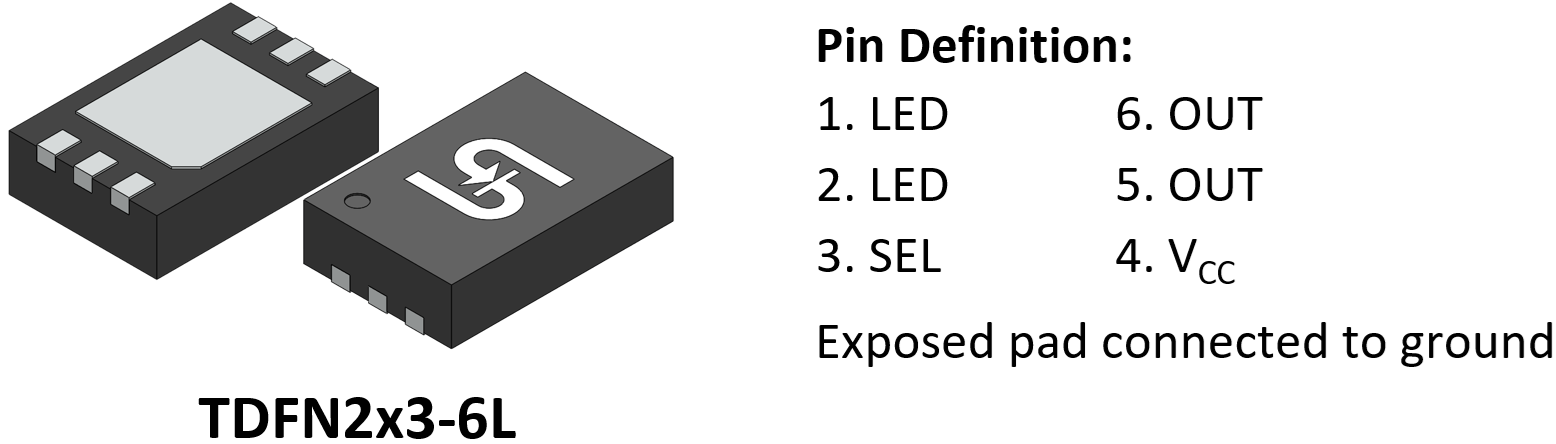

The TSHA2101 is produced with SIP (System in Package) technology, which builds AMR sensor & ASIC in one IC. It supports both 2-wire & 3-wire applications for cylinder position detection.

The TSHA2101 is an AMR (Anisotropic Magneto Resistance) based magnetic sensor, when combined with a magnet, it becomes a non-contact switch with low power consumption, high sensitivity and high reliability device. A horizontal magnetic field parallel to the electrode of the package can be detected by an arbitrary polarity.

TSHA2101 can be used in both pull-up load and pull-down load applications.

Key Features

  • Omni-polar
  • Supply voltage range 3.3V to 30V
  • Operating frequency ≥4kHz
  • -30V Reversed power supply protection
  • Output over-current protection
  • -40°C~105°C operating temperature
  • Open-drain output with self-adaptation of Pull-up or Pull-down load (Equivalent loading ≤50kΩ @ 3-Wire)
  • Moisture sensitivity level: level 1, per J-STD-020
  • RoHS Compliant
  • Halogen-free

Applications

  • 2-wire & 3-wire cylinder position detection
  • Pull-up & Pull-down load applications
  • Packing machine
  • Automation electronics equipment
  • Semiconductor equipment
  • Textile machinery
  • Pneumatic drill machine

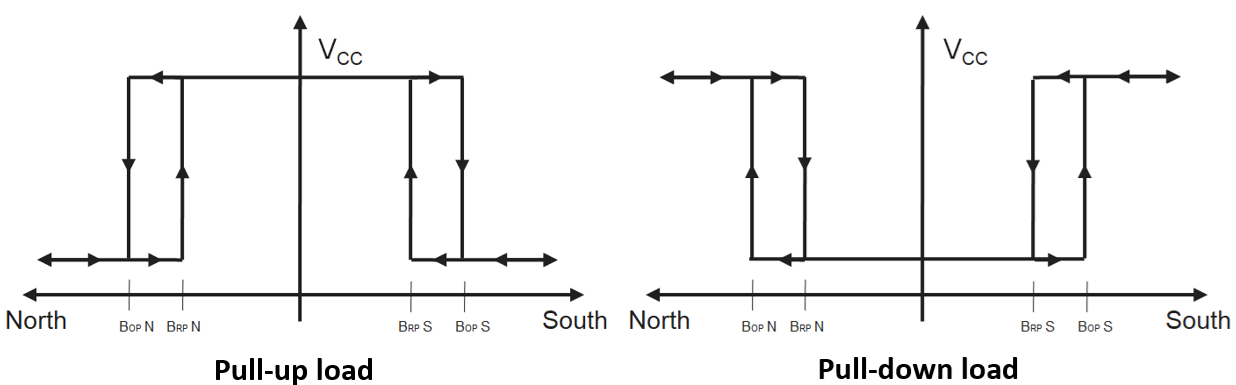

Switching Function

Product Portfolio​

Part NumberPackageESDVCC (V)ICC (µA) Typ.F (Hz) Typ.IOUT (mA)BOP (Gs) Typ.BRP (Gs) Typ.BHYST (Gs) Typ.
TSHA2101CQTDFN2x3-6L4.5KV3.3 ~ 30604500±31±264

Ordering Information

Ordering
Part Number
Outline
(Package)
Reel
(pcs)
Reel Size
(inch)
Inner Box
(pcs)
Carton
(pcs)
Carton Size
(mm)
Gross Weight
(kg/ carton)
TSHA2101CQ-L3 M3GTDFN2x3-6L3,000712,000144,000403 x 387 x 2938.6

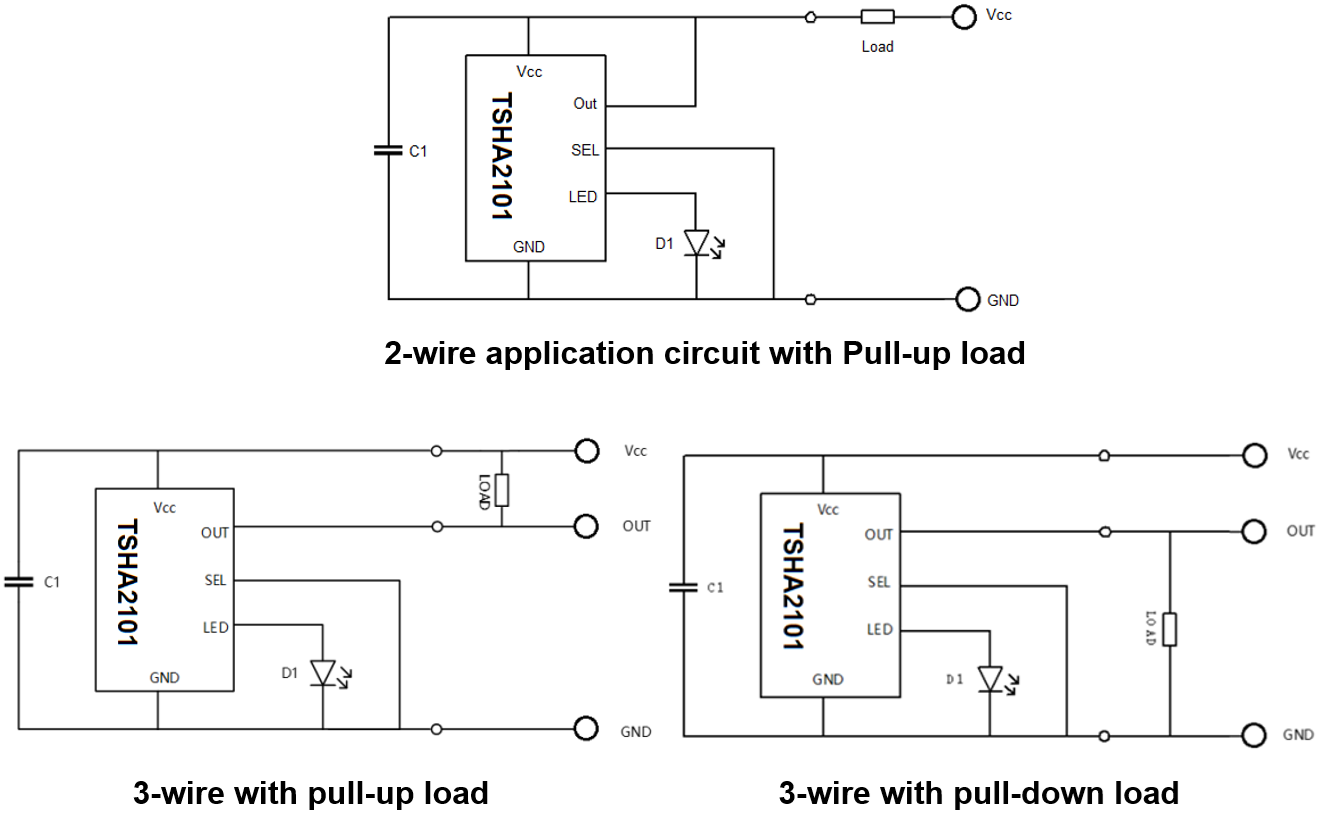

Typical Application Circuit

Simple-driven for E-mode HEMT

Ordering
Part Number
Outline
(Package)
Reel
(pcs)
Reel Size
(inch)
Inner Box
(pcs)
Carton
(pcs)
Carton Size
(mm)
Gross Weight
(kg/ carton)
P/NsThinDPAK4,500139,00045,000360 x 355 x 24513.1
