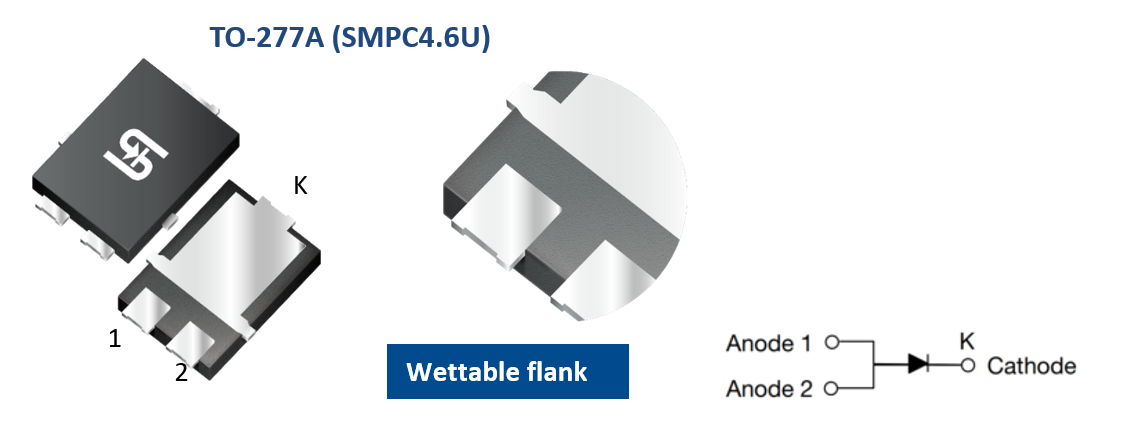

Taiwan Semiconductor’s new AEC-Q101 qualified 150V and 200V Trench Schottky Rectifiers deliver high current capabilities (3A to 15A) and an ultra-low forward voltage down to 0.78V in a compact TO-277A (SMPC4.6U) package. Perfect for SMPS, boost PFC circuits, polarity protection, and automotive or telecom freewheeling applications, they provide the superior efficiency and reliability required for next-generation designs.
Key Features
- AEC-Q101 qualified
- Max. junction temperature 175°C
- Broad Current Range: Ratings from 3A to 15A
- Low forward voltage
- MSL moisture sensitivity level of 1, per J-STD-020
- RoHS Compliant
- Halogen-Free
Applications
- Switching mode power supply (SMPS) 12V ~ 48V range secondary-side output rectification
- Boost PFC circuit
- Freewheeling diode in automotive, telecom and DC-DC converter
- Polarity protection diode
Product Portfolio
| Part Number | Package | VRRM (V) | IF (A) | VF @TA=25°C | IR @ TA= 25°C Max. (μA) | IR @ TA= 125°C Max. (mA) | IFSM @ 8.3 ms (A) | CJ (pF) | |
| Typ. (V) | Max. (V) | ||||||||
| TSUP3S150H | TO-277A (SMPC4.6U) | 150 | 3 | 0.78 | 0.85 | 10 | 5 | 80 | 140 |
| TSUP5S150H | 5 | 0.78 | 0.85 | 10 | 5 | 125 | 248 | ||
| TSUP8S150H | 8 | 0.78 | 0.85 | 10 | 5 | 200 | 395 | ||
| TSUP10S150H | 10 | 0.8 | 0.86 | 10 | 5 | 200 | 395 | ||
| TSUP12S150H | 12 | 0.78 | 0.85 | 20 | 5 | 285 | 520 | ||
| TSUP15S150H | 15 | 0.76 | 0.82 | 30 | 6 | 400 | 840 | ||
| TSUP8S200H | 200 | 8 | 0.82 | 0.88 | 10 | 5 | 200 | 332 | |
| TSUP10S200H | 10 | 0.85 | 0.9 | 10 | 5 | 200 | 332 | ||
| TSUP12S200H | 12 | 0.83 | 0.89 | 20 | 5 | 285 | 446 | ||
| TSUP15S200H | 15 | 0.8 | 0.86 | 30 | 6 | 400 | 782 | ||
