Automotive Bi-directional ESD Protection Diode

claire.chen — Wed, 08 May 2024 07:11:07 +0000

The TESDA24VB30P2CX is Bidirectional ESD rated clamping cell to protect power interfaces, control line, or low speed data line in an electronic system. The capacitance Cd has to be smaller than 100 pF to maintain signal integrity at the maximum data rate of 20 kbit/s. To minimize the total impact of the diode on the system Cd should be smaller than 30 pF. It has been specifically designed to protect sensitive electronic components that are connected to power and control lines from over-voltage damage by Electrostatic Discharging (ESD), and Lightning.

Key Features

Input voltage up to 6V
AEC-Q101 qualified
ESD protect for 2 line with bidirectional
Provide ESD protection for each channel to IEC61000-4-2 (ESD): ±30kV (air), ±30kV(contact) IEC61000-4-5 (Lightning): 5A (8/20μs)
Suitable for 24V and below operating voltage
Protect I/O line or power line.

Package and Circuit diagram

Typical application: ESD protection of two automotive CAN bus lines

Product Portfolio

Part number	V_WM	C_J max	ESD robustness (IEC61000-4-2)	IPPM (at tp= 8/20μs)
TESDA24VB30P2CX	24V	30pF	30KV	5A

News	Newsletter_6_2024_Automotive Bi-directional ESD Protection Diode

The post Automotive Bi-directional ESD Protection Diode first appeared on Taiwan Semiconductor.

500mW, Low IZT 1.8V-39V Surface Mount Zeners

claire.chen — Tue, 07 May 2024 06:26:17 +0000

Taiwan Semiconductor has launched a family of low-bias current Zener diodes. These 50 µA IZT Zener diodes feature popular industry standard SOD-123 packages.
These efficient diodes are specified at low bias current (50 μA), sutable low-bias, energy harvesting and portable battery-powered devices in industrial applications. This reduces losses and increases battery life.

Key Features

Specified at a low-test current (50 μA)
Tolerance approximately: ± 5 %
Wide working voltage range VZ: 1.8 V to 39 V
Packages: SOD-123

Applications

General-purpose Zener drop in upgrade
Low-current general regulation functions
Portable applications
Industrial devices
Lighting systems
Energy harvesting

Product Portfolio

Part number	Marking code	Zener Voltage V_Z@I_ZT(V)			Test Current I_ZT(μA)	Leakage Current I_R@V_R
Part number	Marking code	Min	Nom	Max	Test Current I_ZT(μA)	μA	V
MMSZ4678	CC	1.71	1.8	1.89	50	7.5	1
MMSZ4679	CD	1.9	2	2.1	50	5	1
MMSZ4680	CE	2.09	2.2	2.31	50	4	1
MMSZ4681	CF	2.28	2.4	2.52	50	2	1
MMSZ4682	CH	2.565	2.7	2.835	50	1	1
MMSZ4683	CJ	2.85	3	3.15	50	0.8	1
MMSZ4684	CK	3.135	3.3	3.465	50	7.5	1.5
MMSZ4685	CM	3.42	3.6	3.78	50	7.5	2
MMSZ4686	CN	3.705	3.9	4.095	50	5	2
MMSZ4687	CP	4.085	4.3	4.515	50	4	2
MMSZ4688	CT	4.465	4.7	4.935	50	10	3
MMSZ4689	CU	4.845	5.1	5.355	50	10	3
MMSZ4690	CV	5.32	5.6	5.88	50	10	4
MMSZ4691	CA	5.89	6.2	6.51	50	10	5
MMSZ4692	CX	6.46	6.8	7.14	50	10	5.1
MMSZ4693	CY	7.125	7.5	7.875	50	10	5.7
MMSZ4694	CZ	7.79	8.2	8.61	50	1	6.2
MMSZ4695	DC	8.265	8.7	9.135	50	1	6.6
MMSZ4696	DD	8.645	9.1	9.555	50	1	6.9
MMSZ4697	DE	9.5	10	10.5	50	1	7.6
MMSZ4698	DF	10.45	11	11.55	50	1	8.4
MMSZ4699	DH	11.4	12	12.6	50	1	9.1
MMSZ4700	DJ	12.35	13	13.65	50	1	9.8
MMSZ4701	DK	13.3	14	14.7	50	1	10.6
MMSZ4702	DM	14.25	15	15.75	50	1	11.4
MMSZ4703	DN	15.2	16	16.8	50	1	12.1
MMSZ4704	DP	16.15	17	17.85	50	1	12.9
MMSZ4705	DT	17.1	18	18.9	50	1	13.6
MMSZ4706	DU	18.05	19	19.95	50	1	14.4
MMSZ4707	DV	19	20	21	50	0.01	15.2
MMSZ4708	DA	20.9	22	23.1	50	0.01	16.7
MMSZ4709	DX	22.8	24	25.2	50	0.01	18.2
MMSZ4710	DY	23.75	25	26.25	50	0.01	19
MMSZ4711	EA	25.65	27	28.35	50	0.01	20.4
MMSZ4712	EC	26.6	28	29.4	50	0.01	21.2
MMSZ4713	ED	28.5	30	31.5	50	0.01	22.8
MMSZ4714	EE	31.35	33	34.65	50	0.01	25
MMSZ4715	EF	34.2	36	37.8	50	0.01	27.3
MMSZ4716	EH	37.05	39	40.95	50	0.01	29.6

News	Newsletter_5_2024_500mW, Low IZT 1.8V-39V Surface Mount Zeners

The post 500mW, Low IZT 1.8V-39V Surface Mount Zeners first appeared on Taiwan Semiconductor.

TSL9A12 200mA, 6V, Nanopower IQ 600nA Low-Dropout Linear Regulator with Enable

claire.chen — Fri, 19 Apr 2024 07:09:45 +0000

The TSL9A12 series are ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode with 600nA quiescent current at no load. The TSL9A12 series is ideally suited for standby micro-control-unit systems, especially for always-on applications like portable, and other battery-operated systems. The TSL9A12 series retains all the features that are common to low dropout regulators including a low dropout PMOS pass device, short circuit protection and thermal shutdown.

Key Features

Input voltage up to 6V
Fixed output voltages 1.8V and 3.3V
Ultra-low quiescent current 600nA (typ.)
Output voltage accuracy ±2%
Dropout voltage 400mV @ I_O: 200mA (V_OUT=3.3V)
Stable with 1μF ceramic capacitors
Current limit protection
Over temperature protection
RoHS Compliant
Halogen-Free

Applications

Portable battery powered equipment
Low power microcontrollers
Wireless communication equipment

Typical Application Circuit

Product Portfolio

Part Number	Package	V_IN Max. (V)	V_OUT (V)	I_OUT (mA)	I_Q Typ. (μA)	I_Q Max. (μA)	V_DROP Max. (mV)	Enable
TSL9A12V18CX	SOT-23	6	1.8	200	0.6	1.2	670 @200mA	No
TSL9A12V18CX5	SOT-25							Yes
TSL9A12V33CX	SOT-23	6	3.3	200	0.6	1.2	575 @200mA	No
TSL9A12V33CX5	SOT-25							Yes

Ordering Information

Ordering Part Number	Package	Reel (pcs)	Reel Size (inch)	Inner Box (pcs)	Carton (pcs)	Carton Size (mm)	Gross Weight (kg/ carton)
TSL9A12V18CX RFG	SOT-23	3,000	7	12,000	144,000	390 * 290 * 400	8.24
TSL9A12V18CX5 RFG	SOT-25
TSL9A12V33CX RFG	SOT-23
TSL9A12V33CX5 RFG	SOT-25

News	Newsletter_4_2024_LDO TSL9A12 SERIES

The post TSL9A12 200mA, 6V, Nanopower IQ 600nA Low-Dropout Linear Regulator with Enable first appeared on Taiwan Semiconductor.

Automotive Small-signal MOSFET

claire.chen — Thu, 11 Apr 2024 03:30:02 +0000

Key Features

AEC-Q101 qualified
Manufactured in IATF 16949 certified facilities
Advanced trench cell design
ESD protected (HBM >2kV)
Moisture sensitivity level: level 1, per J-STD-020
RoHS Compliant
Halogen-free

Applications

General purpose switching circuits
High-speed line drivers
Low-side load switches
Relay driver
ADAS system
In Vehicle Infotainment
Drop-in replacement for industry standard commercial versions

Product Portfolio

Part Number	Package	Type	Config	ESD	BV_DS (V)	V_GS (V)	I_D (mA)	V_GS(TH) (V)	R_DS(ON) typ (Ω) @10V_GS	R_DS(ON) typ (Ω) @4.5V_GS
TQM2N7002KCX	SOT-23	N-MOS	Single	≧ 2KV	60	±20	370	0.8 ~ 2.5	1.2	1.5
TQM2N7002KCU	SOT-323		Single	≧ 2KV	60	±20	320	0.8 ~ 2.5	1.2	1.5
TQM2N7002KDCU6	SOT-363		Dual	≧ 2KV	60	±20	330	0.8 ~ 2.5	1.2	1.5
TQM138KCX	SOT-23		Single	≧ 2KV	60	±20	360	0.5 ~ 1.5	1.2	1.3
TQM138KCU	SOT-323		Single	≧ 2KV	60	±20	310	0.5 ~ 1.5	1.2	1.3
TQM138KDCU6	SOT-363		Dual	≧ 2KV	60	±20	320	0.5 ~ 1.5	1.2	1.3
TQM123KCX	SOT-23		Single	≧ 2KV	100	±20	170	1.5 ~ 2.5	3.5	4.3
TQM84KCX	SOT-23	P-MOS	Single	≧ 2KV	-60	±20	-190	-0.8 ~ -2.5	1.9	2.3
TQM84KCU	SOT-323		Single	≧ 2KV	-60	±20	-160	-0.8 ~ -2.5	1.9	2.3
TQM84KDCU6	SOT-363		Dual	≧ 2KV	-60	±20	-170	-0.8 ~ -2.5	1.9	2.3

Ordering Information

Ordering Part Number	Package	Reel (pcs)	Reel Size (inch)	Inner Box (pcs)	Carton (pcs)	Carton Size (mm)	Gross Weight (kg/ carton)
TQM2N7002KCX RFG	SOT-23	3,000	7	18,000	108,000	85 * 270 * 217	3.95
TQM2N7002KCU RFG	SOT-323
TQM2N7002KDCU6 RFG	SOT-363
TQM138KCX RFG	SOT-23
TQM138KCU RFG	SOT-323
TQM138KDCU6 RFG	SOT-363
TQM123KCX RFG	SOT-23
TQM84KCX RFG	SOT-23
TQM84KCU RFG	SOT-323
TQM84KDCU6 RFG	SOT-363

News	Newsletter_3_2024_Automotive Small-signal MOSFET

The post Automotive Small-signal MOSFET first appeared on Taiwan Semiconductor.

Automotive qualified, TJ 175°C 100V & 120V Trench Schottky Surface Mount Rectifier

claire.chen — Wed, 10 Apr 2024 05:00:13 +0000

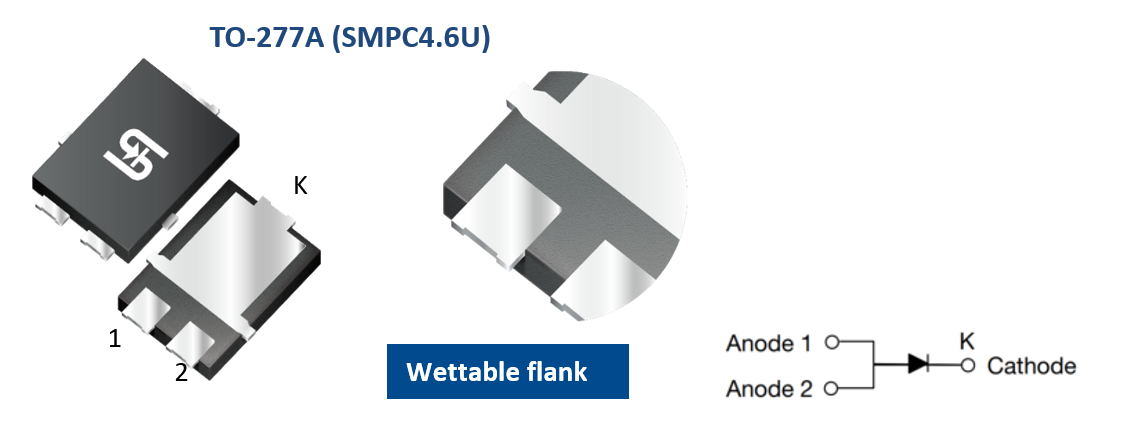

Key Features

AEC-Q101 qualified
Max. junction temperature 175°C
Low power loss, high efficiency
MSL 1
RoHS Compliant
Halogen-Free

Applications

Switching Mode Power Supply (SMPS)
Adapters
Lighting application
Low-voltage DC-DC converter

Product Portfolio

Part Number	Package	V_RRM (V)	I_F (A)	V_F @ T_A= 25°C		I_R @T_A= 25°C max. (μA)	I_R @T_A= 175°C max. (μA)	I_FSM @ 8.3ms (A)	Q_C Typ (nC)
Part Number	Package	V_RRM (V)	I_F (A)	Typ. (V)	Max. (V)	I_R @T_A= 25°C max. (μA)	I_R @T_A= 175°C max. (μA)	I_FSM @ 8.3ms (A)	Q_C Typ (nC)
TSUP8H100H	TO-277A (SMPC4.6U)	100	8	0.71	0.75	50	10	240	583
TSUP10H100H			10	0.71	0.75	50	10	320	732
TSUP12H100H			12	0.70	0.75	50	10	360	883
TSUP15H100H			15	0.72	0.75	50	10	400	1014
TSUP8H120H		120	8	0.73	0.76	50	10	240	462
TSUP10H120H			10	0.73	0.76	50	10	320	615
TSUP12H120H			12	0.72	0.76	50	10	360	744
TSUP15H120H			15	0.72	0.76	50	10	400	832

Ordering Information

Ordering Part Number	Package	Reel (pcs)	Reel Size (inch)	Inner Box (pcs)	Carton (pcs)	Carton Size (mm)	Gross Weight (kg/ carton)
TSUP8H100H	TO-277A (SMPC4.6U)	6,000	13	12,000	60,000	390 * 356 * 230	13.11
TSUP10H100H
TSUP12H100H
TSUP15H100H
TSUP8H120H
TSUP10H120H
TSUP12H120H
TSUP15H120H

News	Newsletter_2_2024_Auotmotive, Tj 175C 100V & 120V SMPC4.6U Trench Schottky

The post Automotive qualified, TJ 175°C 100V & 120V Trench Schottky Surface Mount Rectifier first appeared on Taiwan Semiconductor.

Integrated AMR for Cylinder Position Detection

claire.chen — Fri, 19 Jan 2024 01:00:36 +0000

Description

The TSHA2101 is produced with SIP (System in Package) technology, which builds AMR sensor & ASIC in one IC. It supports both 2-wire & 3-wire applications for cylinder position detection.

The TSHA2101 is an AMR (Anisotropic Magneto Resistance) based magnetic sensor, when combined with a magnet, it becomes a non-contact switch with low power consumption, high sensitivity and high reliability device. A horizontal magnetic field parallel to the electrode of the package can be detected by an arbitrary polarity.

TSHA2101 can be used in both pull-up load and pull-down load applications.

Key Features

Omni-polar
Supply voltage range 3.3V to 30V
Operating frequency ≥4kHz
-30V Reversed power supply protection
Output over-current protection
-40°C~105°C operating temperature
Open-drain output with self-adaptation of Pull-up or Pull-down load (Equivalent loading ≤50kΩ @ 3-Wire)
Moisture sensitivity level: level 1, per J-STD-020
RoHS Compliant
Halogen-free

Applications

2-wire & 3-wire cylinder position detection
Pull-up & Pull-down load applications
Packing machine
Automation electronics equipment
Semiconductor equipment
Textile machinery
Pneumatic drill machine

Switching Function

Product Portfolio

Part Number	Package	ESD	V_CC (V)	I_CC (µA) Typ.	F (Hz) Typ.	I_OUT (mA)	B_OP (Gs) Typ.	B_RP (Gs) Typ.	B_HYST (Gs) Typ.
TSHA2101CQ	TDFN2x3-6L	4.5KV	3.3 ~ 30	60	4	500	±31	±26	4

Ordering Information

Ordering Part Number	Outline (Package)	Reel (pcs)	Reel Size (inch)	Inner Box (pcs)	Carton (pcs)	Carton Size (mm)	Gross Weight (kg/ carton)
TSHA2101CQ-L3 M3G	TDFN2x3-6L	3,000	7	12,000	144,000	403 x 387 x 293	8.6

Typical Application Circuit

News	Newsletter_1_2024_Integrated-AMR-for-Cylinder-Position-Detection

The post Integrated AMR for Cylinder Position Detection first appeared on Taiwan Semiconductor.

Industrial & Automotive Qualified 400V & 600V ESD Capability Rectifiers

sking.lee — Thu, 07 Dec 2023 16:00:01 +0000

Taiwan Semiconductor (TSC), a global supplier of discrete power electronics devices, LED drivers, analog ICs and ESD protection devices, announces an additional 400V & 600V ESD capability rectifiers to the portfolio. These devices meet the need for polarity protection plus ESD survival and protection.

Key Benefits

Enhance ESD capability >10KV per IEC-61000-4-2
Operating temperature range from -40℃ to 175℃ for high reliability.
Both Automotive AEC-Q and Industrial grades available.

Applications

General purpose diode
Polarity protection diode
Rectification DC-440 Hz

Product Portfolio

Part Number	V_RRM(V)	I_F (A)	V_F (V)	IEC-61000-4-2 Contact Mode	T_J (℃)	Package	AEC-Q
TSD1GLW	400	1	1.1	>10KV	175	SOD-123W	No
TSD1GLWH	400	1	1.1	>10KV	175	SOD-123W	Yes
TSD2GFS	400	2	1.1	>10KV	175	SOD-128	No
TSD2GFSH	400	2	1.1	>10KV	175	SOD-128	Yes
TSD2GAL	400	2	1.1	>10KV	175	ThinSMA	No
TSD2GALH	400	2	1.1	>10KV	175	ThinSMA	Yes
TSD3GFS	400	3	1.1	>10KV	175	SOD-128	No
TSD3GFSH	400	3	1.1	>10KV	175	SOD-128	Yes
TSD3GAL	400	3	1.1	>10KV	175	ThinSMA	No
TSD3GALH	400	3	1.1	>10KV	175	ThinSMA	Yes
TSD1JLW	600	1	1.1	>10KV	175	SOD-123W	No
TSD1JLWH	600	1	1.1	>10KV	175	SOD-123W	Yes
TSD2JFS	600	2	1.1	>10KV	175	SOD-128	No
TSD2JFSH	600	2	1.1	>10KV	175	SOD-128	Yes
TSD2JAL	600	2	1.1	>10KV	175	ThinSMA	No
TSD2JALH	600	2	1.1	>10KV	175	ThinSMA	Yes
TSD3JFS	600	3	1.1	>10KV	175	SOD-128	No
TSD3JFSH	600	3	1.1	>10KV	175	SOD-128	Yes
TSD3JAL	600	3	1.1	>10KV	175	ThinSMA	No
TSD3JALH	600	3	1.1	>10KV	175	ThinSMA	Yes

News	Newsletter_5_2023_ESD-Capability-Rectifier

The post Industrial & Automotive Qualified 400V & 600V ESD Capability Rectifiers first appeared on Taiwan Semiconductor.

Automotive, AEC-Q101, 400W 5V-75V Surface Mount Transient Voltage Suppressor

sking.lee — Mon, 04 Dec 2023 16:00:34 +0000

TSC new TVS peak power dissipation PPK=400W packaged in small package SOD-123W. Compares to conventional DO-214AC (SMA) package that has the same PPK=400W, SOD-123W package can save 52% PCB space area of DO-214AC (SMA) and SOD-123W package can reduce height of DO-214AC (SMA). It help for PCB and case volume shrinking design.

Thermal performance compare

Part Number	PPPM (W)	Package	RϴJC (°C/W)
SMF4L5.0AH - SMF4L75AH	400	SOD-123W	14.4
SMAJ5.0(A) – SMAJ188(A)	400	DO-214AC (SMA)	31

Units mounted on PCB (5mm x 5mm Cu pad test board)

By the same power dissipation PPK=400W TVS, SOD-123W thermal performance is better than DO-214AC (SMA) package. SOD-123W TVS RϴJC is lower than DO-214AC (SMA) TVS, It helps gain more robust application reliability.

Product Portfolio

Part Number	Marking Code	Breakdown Voltage VBR@IT (V)		Test Current IT (mA)	Working Stand-off Voltage VWM (V)	Maximum Blocking Leakage Current IR@VWM (µA)	Maximum Peak Impulse Current IPPM (A) tp =10/1000 μs	Maximum Clamping Voltage VC@IPPM (V)
Part Number	Marking Code	Min.	Max.	Test Current IT (mA)	Working Stand-off Voltage VWM (V)	Maximum Blocking Leakage Current IR@VWM (µA)	Maximum Peak Impulse Current IPPM (A) tp =10/1000 μs	Maximum Clamping Voltage VC@IPPM (V)
SMF4L5.0AH	4W05U	6.4	7.0	10	5	800	40.1	9.2
SMF4L6.0AH	4W06U	6.67	7.37	10	6	800	35.9	10.3
SMF4L6.5AH	4W6U5	7.22	7.98	10	6.5	500	33.1	11.2
SMF4L7.0AH	4W07U	7.78	8.6	10	7	200	30.9	12.0
SMF4L7.5AH	4W7U5	8.33	9.21	1	7.5	100	28.7	12.9
SMF4L8.0AH	4W08U	8.89	9.83	1	8	50	27.2	13.6
SMF4L8.5AH	4W8U5	9.44	10.4	1	8.5	20	25.7	14.4
SMF4L9.0AH	4W09U	10.0	11.1	1	9	5	26.4	15.4
SMF4L10AH	4W10U	11.1	12.3	1	10	5	23.5	17.0
SMF4L11AH	4W11U	12.2	13.5	1	11	1	22	18.2
SMF4L12AH	4W12U	13.3	14.7	1	12	1	20.1	19.9
SMF4L13AH	4W13U	14.4	15.9	1	13	1	18.6	21.5
SMF4L14AH	4W14U	15.6	17.2	1	14	1	17.2	23.2
SMF4L15AH	4W15U	16.7	18.5	1	15	1	16.4	24.4
SMF4L16AH	4W16U	17.8	19.7	1	16	1	15.4	26.0
SMF4L17AH	4W17U	18.9	20.9	1	17	1	14.5	27.6
SMF4L18AH	4W18U	20.0	22.1	1	18	1	13.7	29.2
SMF4L20AH	4W20U	22.2	24.5	1	20	1	12.3	32.4
SMF4L22AH	4W22U	24.4	26.9	1	22	1	11.3	35.5
SMF4L24AH	4W24U	26.7	29.5	1	24	1	10.3	38.9
SMF4L26AH	4W26U	28.9	31.9	1	26	1	9.5	42.1
SMF4L28AH	4W28U	31.1	34.4	1	28	1	8.8	45.4
SMF4L30AH	4W30U	33.3	36.8	1	30	1	8.3	48.4
SMF4L33AH	4W33U	36.7	40.6	1	33	1	7.5	53.3
SMF4L36AH	4W36U	40.0	44.2	1	36	1	6.9	58.1
SMF4L40AH	4W40U	44.4	49.1	1	40	1	6.2	64.5
SMF4L43AH	4W43U	47.8	52.8	1	43	1	5.8	69.4
SMF4L45AH	4W45U	50.0	55.3	1	45	1	5.5	72.7
SMF4L48AH	4W48U	53.3	58.9	1	48	1	5.2	77.4
SMF4L51AH	4W51U	56.7	62.7	1	51	1	4.9	82.4
SMF4L54AH	4W54U	60.0	66.3	1	54	1	4.6	87.1
SMF4L58AH	4W58U	64.4	71.2	1	58	1	4.3	93.6
SMF4L60AH	4W60U	66.7	73.7	1	60	1	4.1	96.8
SMF4L64AH	4W64U	71.1	78.6	1	64	1	3.9	103.0
SMF4L70AH	4W70U	77.8	86.0	1	70	1	3.5	113.0
SMF4L75AH	4W75U	83.3	92.1	1	75	1	3.3	121.0

Ordering Information

Ordering Part Number	Package	Packing
SMF4LxAH	SOD-123W	10,000 / Tape & Reel

Notes: “x” defines voltage from 5V(SMF4L5.0AH) to 75V(SMF4L75AH)

The post Automotive, AEC-Q101, 400W 5V-75V Surface Mount Transient Voltage Suppressor first appeared on Taiwan Semiconductor.

GaN Transistor 650V

sking.lee — Thu, 11 May 2023 02:00:56 +0000

E-mode HEMT

Taiwan Semiconductor introduces 650V Enhancement Mode GaN Transistors which are packaged in thermally efficient PDFN packages with small 5×6 & 8×8 mm footprint. These GaN Transistor products meet today’s high-power system requirements to achieve higher operating currents, higher efficiency, and smaller size and weight. The transistors, developed specifically for industrial, and renewable energy industries, feature the highest current GaN in production.

Key Features

True Enhancement mode
Best FOM and performance
No reverse recovery loss
Easy to parallel

Common with Si MOSFET

True enhancement-mode: Normally off
Voltage driven
Easy slew rate control by external R_G
Compatible with Si MOSEFT gate driver chip

Applications

SMPS, Chargers
DC/DC converter
Server / Telecom / Data center
Inverters
Renewable Energy

Differences with Si MOSFET

Lower Q_G: Lower drive loss / faster switching
Higher gain and lower V_GS (+5V ~ 6V) to turn on
Lower V_GS(th): 1.5V (typ.)

Product Portfolio

Package	Part Number	V_DS  (V)	V_GS (V)	V_GS(TH) (V)	ID (A)	R_DS(ON) Typ. (mΩ)	R_DS(ON) Max. (mΩ)	Qg. (nC)	Qoss (nC)	Qrr (nC)
PDFN88	TSG65N068CE	650	-10 / +7	1.1~ 2.6	30	50	68	6.7	61	0
PDFN88	TSG65N068CE	650	-10 / +7	1.1~ 2.6	18	78	110	4	37	0
PDFN88	TSG65N195CE	650	-10 / +7	1.1~ 2.6	11	150	195	2.2	19	0
PDFN56	TSG65N190CR	650	-10 / +7	1.1~ 2.6	11	150	195	2.2	19	0

* Max Tj =150°C

Simple-driven for E-mode HEMT

Most Popular Solutions
Gate Drivers for GaN device: ADuM4121ARIZ/ ACPL-P346/ NCP51820/ Si8271/ Si8273/ 4/ 5.

Si MOS Driver Circuit Modification
The driving voltage for Si MOSFET is usually 10V to 12V. It’s easy to shift the voltage level to 6V for GaN Transistor by add 4 extra R, C, ZD components.

Gate Bias Level		Gate Bias Level	Si MOSFET
Maximum rating		TSG65N068CE	-20V / +20V
Typical value	Off	TSG65N068CE	0V
Typical value	On	TSG65N195CE	+10V ~ 12V

Symbol	Value	Footprint	Function	TSC product
R₃	~ 10 kΩ	0402 / 0603	Keep the driving voltage
C₁	~ 47 nF	0402 / 0603	Hold negative voltage for turning off
ZD₁	5.6V Zener	SOD923F / 0603	Clamp the positive gate voltage	TSZU52C5V6
ZD₂	9.1V Zener	SOD923F / 0603	Clamp the negative gate voltage	TSZU52C9V1

News	Newsletter_3_2023_GaN_Transistor_650V

The post GaN Transistor 650V first appeared on Taiwan Semiconductor.

Automotive, AEC-Q101 45V-200V Schottky Barrier Surface Mount Rectifier

sking.lee — Thu, 04 May 2023 04:29:35 +0000

Key Features

AEC-Q101 qualified
Low power loss, high efficiency
Ideal for automated placement
High surge current capability
Moisture sensitivity level: level 1, per J-STD-020
RoHS Compliant
Halogen-free

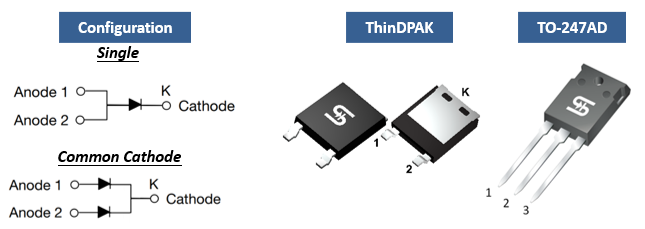

Mechanical Data

Case: ThinDPAK
Molding compound meets UL 94V-0 flammability rating
Terminal: Matte tin plated leads, solderable per J-STD-002
Meet JESD 201 class 2 whisker test
Polarity: Indicated by cathode band
Weight: 0.196g (approximately)

Applications

Low voltage, high frequency, inverter
DC/DC converter
Freewheeling diodes
Reverse battery protection
Car lighting

Product Portfolio

Part Number	Config.	VRRM(V)	IF (A)	IFSM (A)	VF (V) @ Tj 25°C		IR (µA) @ Tj 25°C	IR (µA) @ Tj 125°C
Part Number	Config.	VRRM(V)	IF (A)	IFSM (A)	Typ	Max	Max (µA)	Max (mA)
MBRAD545H	Single	45	5	120	0.58	0.7	100	20
MBRAD845H	Single		8	150	0.6	0.7	100	20
MBRAD1045H	Single		10	200	0.6	0.75	100	20
MBRAD1545H	Single		15	250	0.55	0.63	200	70
MBRAD2045H	Single		20	330	0.63	0.73	100	30
MBRAD1045DH	Common cathode		10(5A)	120	0.58	0.7	100	20
MBRAD1545DH	Common cathode		15(7.5A)	150	0.6	0.7	100	20
MBRAD560H	Single	60	5	120	0.66	0.8	100	20
MBRAD860H	Single		8	150	0.68	0.75	100	20
MBRAD1060H	Single		10	200	0.7	0.8	100	20
MBRAD1560H	Single		15	250	0.7	0.75	100	20
MBRAD2060H	Single		20	330	0.7	0.75	100	30
MBRAD1060DH	Common cathode		10(5A)	120	0.66	0.8	100	20
MBRAD1560DH	Common cathode		15(7.5A)	150	0.66	0.75	100	20
MBRAD5100H	Single	100	5	120	0.77	0.85	10	1
MBRAD8100H	Single		8	150	0.79	0.85	10	2
MBRAD10100H	Single		10	200	0.79	0.83	10	2
MBRAD15100H	Single		15	250	0.81	0.85	10	5
MBRAD20100H	Single		20	330	0.79	0.85	10	5
MBRAD10100DH	Common cathode		10(5A)	120	0.77	0.85	10	1
MBRAD15100DH	Common cathode		15(7.5A)	150	0.78	0.85	10	2
MBRAD5150H	Single	150	5	120	0.83	0.88	10	1
MBRAD8150H	Single		8	150	0.84	0.95	10	2
MBRAD10150H	Single		10	200	0.83	0.88	10	2
MBRAD15150H	Single		15	240	0.86	0.95	10	5
MBRAD20150H	Single		20	330	0.87	0.9	10	5
MBRAD10150DH	Common cathode		10(5A)	120	0.83	0.88	10	1
MBRAD15150DH	Common cathode		15(7.5A)	150	0.84	0.95	10	2
MBRAD5200H	Single	200	5	120	0.83	0.88	10	1
MBRAD8200H	Single		8	150	0.88	0.95	10	2
MBRAD10200H	Single		10	200	0.85	0.88	10	2
MBRAD20200H	Single		20	300	0.9	0.95	10	5
MBRAD10200DH	Common cathode		10(5A)	120	0.83	0.88	10	1
MBRAD15200DH	Common cathode		15(7.5A)	120	0.87	0.95	10	2

Ordering Information

Ordering Part Number	Outline (Package)	Reel (pcs)	Reel Size (inch)	Inner Box (pcs)	Carton (pcs)	Carton Size (mm)	Gross Weight (kg/ carton)
P/Ns	ThinDPAK	4,500	13	9,000	45,000	360 x 355 x 245	13.1

News	Newsletter_2_2023_Automotive_grade_ThinDPAK_Planar_Schottky

The post Automotive, AEC-Q101 45V-200V Schottky Barrier Surface Mount Rectifier first appeared on Taiwan Semiconductor.

Product News - Taiwan Semiconductor

Automotive Bi-directional ESD Protection Diode

Key Features

Package and Circuit diagram

Product Portfolio

500mW, Low IZT 1.8V-39V Surface Mount Zeners

Key Features

Applications

Product Portfolio

TSL9A12 200mA, 6V, Nanopower IQ 600nA Low-Dropout Linear Regulator with Enable

Key Features

Applications

Typical Application Circuit

Product Portfolio

Ordering Information

Automotive Small-signal MOSFET

Key Features

Applications

Product Portfolio

Ordering Information

Automotive qualified, TJ 175°C 100V & 120V Trench Schottky Surface Mount Rectifier

Key Features

Applications

Product Portfolio

Ordering Information

Integrated AMR for Cylinder Position Detection

Description

Key Features

Applications

Switching Function

Product Portfolio​

Ordering Information

Typical Application Circuit

Industrial & Automotive Qualified 400V & 600V ESD Capability Rectifiers

Key Benefits​

Applications

Product Portfolio

Automotive, AEC-Q101, 400W 5V-75V Surface Mount Transient Voltage Suppressor

Thermal performance compare

Product Portfolio

Ordering Information

GaN Transistor 650V

E-mode HEMT

Key Features

Common with Si MOSFET

Applications

Differences with Si MOSFET

Product Portfolio

Simple-driven for E-mode HEMT

Recommend Value

Automotive, AEC-Q101 45V-200V Schottky Barrier Surface Mount Rectifier

Key Features

Mechanical Data

Applications

Product Portfolio

Ordering Information

Product Portfolio

Key Benefits
